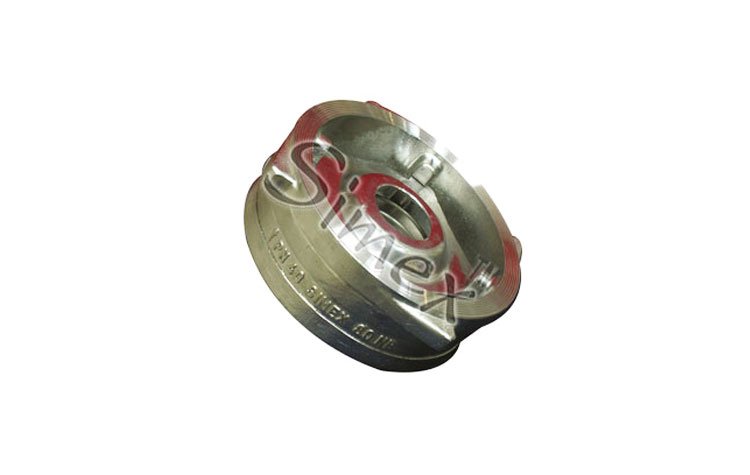

Simex offers the wide array of Disc check valves which are having compact wafer design and low cost that made it a popular choice when space and price are major factors in valve selection.
Our Disc Check Valves are recommended after traps discharging into closed systems to guarantee against return or spill back. DCVs feature a compact and rugged stainless steel design and are suitable for any process liquid & gas, not just steam. Main advantage of these check valves is they can be mounted between pipe flanges in any direction.
Disc check valve which is having the movable disc that block the flow or allow forward flow. The seat opening cross-section may be perpendicular to the centerline between the two ports or at an angle.
Although the disc check valves are available in various sizes in order to meet the requirements of different applications. The valve allows full, unobstructed flow and automatically closes as pressure decreases. These valves are fully closed when flow reaches zero, in order to prevent backflow.
| Size | A | B | C | D | T | L |
|---|---|---|---|---|---|---|
| 15 MM | 43 | 29 | 15 | 38 | 19 | 60 |
| 20 MM | 53 | 36 | 20 | 45 | 19 | 70 |
| 25 MM | 63 | 44 | 25 | 56 | 22 | 80 |
| 32 MM | 73 | 55 | 32 | 65 | 28 | 90 |
| 40 MM | 83 | 66 | 40 | 74 | 32 | 98 |
| 50 MM | 93 | 77 | 50 | 85 | 40 | 112 |
| 65 MM | 114 | 98 | 65 | 107 | 46 | 141 |
| 80 MM | 132 | 111 | 80 | 122 | 50 | 151 |
| 100 MM | 153 | 130 | 100 | 142 | 60 | 181 |
| 125 MM | 185 | 161 | 125 | 170 | 90 | 215 |
| 150 MM | 212 | 190 | 150 | 202 | 105 | 155 |
| 200 MM | 277 | 250 | 200 | 261 | 140 | 320 |
| No. | Part Name | Materials |
|---|---|---|
| 1 | Body | CF8 / CF8M Investment Casting |
| 2 | Disc | CF8 / CF8M Investment Casting |
| 3 | Valve Guide | CF8 / CF8M Investment Casting |
| 4 | Spring | S / S 304 / S / S 316 Standard |
| Maximum Operating Pressure: | 40 kg / cm² |
| Maximum Operating Temperature: | 300°C |
| Maximum Cold Hydraulic Pressure: | 60 kg / cm² |
| Maximum Operating Temperature: | 50°C |
| As Per BS 10 Table D, E & H |
| As Per DIN PN 6, 10, 16, 25 & 40 |
| As Per ANSI 150 & 300 Class |
| As Per API 598 |
| 15 mm to 100 mm Suitable for PN6 – PN40 and ANSI 150 – 300 CL Designed And Mfg. In Accordance With BS 7438 |
